pu pre-insulated spiral steel pipe-New design insulation pipes

Views: 46 Author: bingo Publish Time: 2016-02-23 Origin: Site

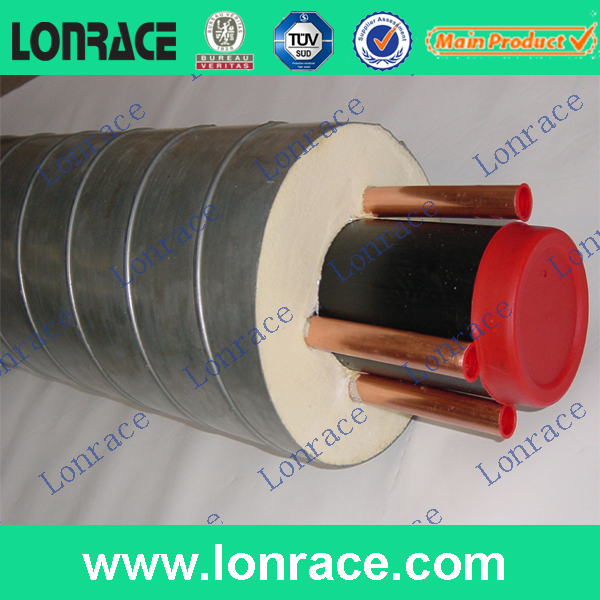

Product description of pu pre-insulated spiral steel pipe

pu pre-insulated spiral steel pipe

Designed for transporting the liquid or gaseous fludis for cold and hot temperatures. Because it is high quality, workmanship, safety and durability, it is a good choice for the pipe system used in chemical industry, food industry, cold industry and so on.

Common speicification of pu pre-insulated spiral steel pipe

Internal steel pipe				Jacket pipe		PU Thickness mm	The Weight of PU Kg/m3	Water Intake Capacity It/m3	The length of weld making place S mm	Unit Length L m
Nominal Diameter d mm	Outer Diameter d mm	Inches d mm	Wall Thickness t mm	Diameter D mm	Wall Thickness T mm	PU Thickness mm	The Weight of PU Kg/m3	Water Intake Capacity It/m3	The length of weld making place S mm	Unit Length L m
20	26.7	3/4	2.87	100	0.5	36.15	50-70	0.21	200	6
25	33.4	1	3.38	100	0.5	32.8	50-70	0.32	200	6
32	42.2	1 1/4	3.56	125	0.5	40.9	50-70	0.4	200	6
40	48.3	1 1/2	3.68	125	0.5	37.85	50-70	0.46	200	6
50	60.3	2	3.91	150	0.5	44.35	50-70	0.65	200	6
65	73.0	2 1/2	5.16	150	0.5	38	50-70	0.84	200	6
80	88.9	3	5.49	180	0.5	45.05	50-70	1.08	200	6
100	114.3	4	6.02	200	0.5	42.35	50-70	1.56	200	6
125	141.3	5	6.55	225	0.6	41.25	50-70	2.06	200	6
150	168.3	6	7.11	250	0.6	40.25	50-70	2.45	200	6
200	219.1	8	8.18	325	0.7	52.25	50-70	3.04	200	6
250	273.0	10	9.27	400	0.7	62.8	50-70	4.21	200	6
300	323.8	12	10.31	450	0.8	62.3	50-70	5.6	200	6
350	355.6	14	9.53	500	0.8	71.4	50-70	6.16	200	6
400	406.4	16	9.53	550	0.9	70.9	50-70	7.92	200	6
450	457.0	18	9.53	600	1.0	70.5	50-70	8.93	200	6
500	508.0	20	9.53	700	1.1	94.9	50-70	9.95	200	6
600	610.0	24	9.53	800	1.2	93.8	50-70	13.44	200	6
Remark: 1. The blue color type we have supply already 2. Galvanized spiral pipe with 100g galvanized. 3. PU with fire resistant class B 4. Internal seamless pipe with SCHEDULE 40 standard.

Application of pu pre-insulated spiral steel pipe

Advantage of pu pre-insulated spiral steel pipe
	1.Closed cell polyurethane insulation offering the lowest available thermal conductivity and best natural resistance to water penetration. 2.Galvanized spiral outer jacketing protecting the insulation from erosion and acting as a vapor barrier against water intrusion or condensation. 3.Engineered coupling and fitting insulation kits providing the same level of moisture resistance and insulation protection. Reduced installation risk to building and workers using convenient pre-insulated joints and fittings kits installed with a fraction of the labor. 4.Improved owner confidence in installation quality using a system, with the exception of the couplings and fittings, completely insulated at our plant. 5.Long-term energy savings over the life of the system with the superior insulating capabilities of polyurethane insulation.

Advantage of pu pre-insulated spiral steel pipe

1.Closed cell polyurethane insulation offering the lowest available thermal conductivity and best natural resistance to water penetration.
2.Galvanized spiral outer jacketing protecting the insulation from erosion and acting as a vapor barrier against water intrusion or condensation.
3.Engineered coupling and fitting insulation kits providing the same level of moisture resistance and insulation protection.
Reduced installation risk to building and workers using convenient pre-insulated joints and fittings kits installed with a fraction of the labor.
4.Improved owner confidence in installation quality using a system, with the exception of the couplings and fittings, completely insulated at our plant.
5.Long-term energy savings over the life of the system with the superior insulating capabilities of polyurethane insulation.

.JPG

Why Choose Us?
Jiangyin Lonrace building materials Co., Ltd. is a leading company which specialized in dealing with various kinds of ceilings in Jiangsu Province, China. Our company brings in advanced testing & production equipment to guarantee quality precisely. With our policy of “Quality first, Customersprior and Price reasonable” we have established good relationship with the customers all over the world. Customers and friends are warmly welcome to contact and cooperate with us.

Why Choose Us?

Jiangyin Lonrace building materials Co., Ltd. is a leading company which specialized in dealing with various kinds of ceilings in Jiangsu Province, China. Our company brings in advanced testing & production equipment to guarantee quality precisely.

With our policy of “Quality first, Customersprior and Price reasonable” we have established good relationship with the customers all over the world.

Customers and friends are warmly welcome to contact and cooperate with us.
