fiberglass ceiling

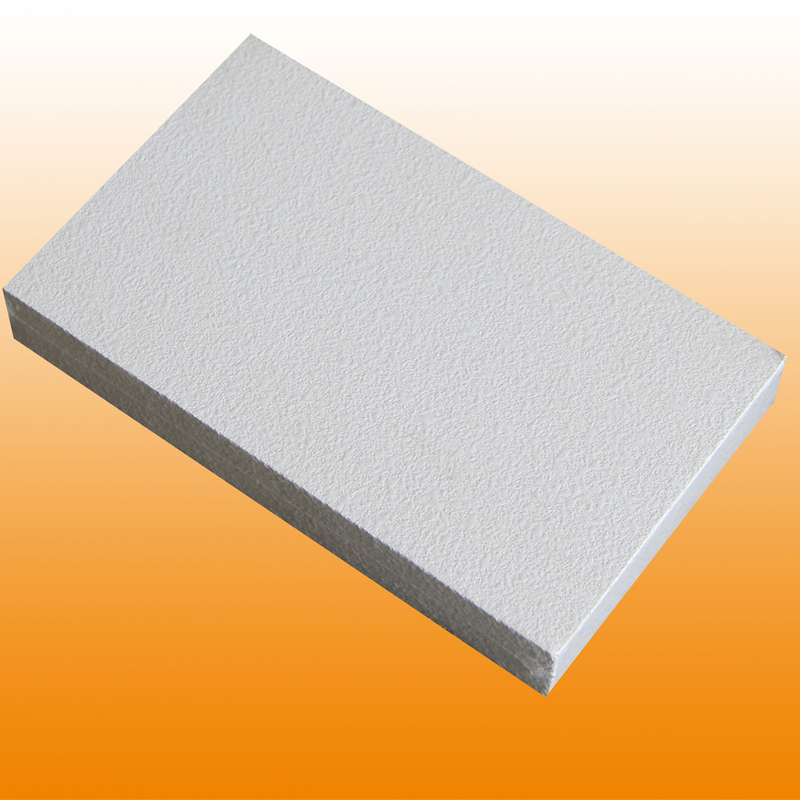

The tiles are manufactured from high density fiberglass wool.The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue.Two edges are square, while the others are concealed. The tiles will cover the suspension system after installation. This kind of concealed tiles can not be trimed and re-installed.
specification:
thickness:
Ceiling Tile Shape:
Density:
Quantity:
  • fiberglass ceiling

  • lonrace

  • 55

  • 90%

  • 90%

  • White;Black or customerized

  • CE,ISO9001, SGS, TUV

  • carton packing

MATERIAL Torrefaction compounded high density fiberglass wool

FACE
1.Special painted laminated with decorative fiberglass tissue-FIBERGLASS CEILING /E- FIBERGLASS CEILING
2.Wrapped with special decorative fabric–DECORATIVE FIBERGLASS PANNEL
COLOR White,black and others to order
FIRE-RESISTANT CLASS A
NRC 0.9-1.0,excellent sound absorption
THERMAL-RESISTANT ≥0.4(m2.k/m)
HUMIDITY Dimensionally stable with RH up to 95% at 40°C
No sagging,wrapping or delaminating
MOISTURE ARTE ≤1%
ENVIROMENTAL IMPACT Tiles and packings are fully recyclable
SAFETY Limit of radionuclides in building materials
Specific activity of 226Ra:Ira≤1.0
Specific activity of 226Ra,232Th,40K:Ir≤1.3
CERTIFICATES SGS, ISO9001:2008,CE, KFI

NRC test result

DENSITY

SIZE(MM)

THICKNESS

PACKING

LOADING QUANTITY(40HQ)









100kg/m³

600x600mm

   12mm

   25PCS/CTN

13300PCS/532CTNS/4788SQM

600x1200mm

6650PCS/266CTNS/4788SQM

600x600mm

   15mm

   20PCS/CTN

10640PCS/532CTNS/3830.4SQM

600x1200mm

5320PCS/266CTNS/3830.4SQM

600x600mm

   20mm

   15PCS/CTN

7980PCS/532CTNS/2872.8SQM

600x1200mm

3990PCS/266CTNS/2872.8SQM

600x600mm

   25mm

   12PCS/CTN

6384PCS/532CTNS/2298.2SQM

600x1200mm

3192PCS/266CTNS/2298.2SQM

Other Size to Order:600x1800,600x2400,1200x1200(mm)
