mgo board-excellent fireproof wall panel

Views: 27     Author: bingo     Publish Time: 2016-03-09      Origin: Site



Product description of mgo board:

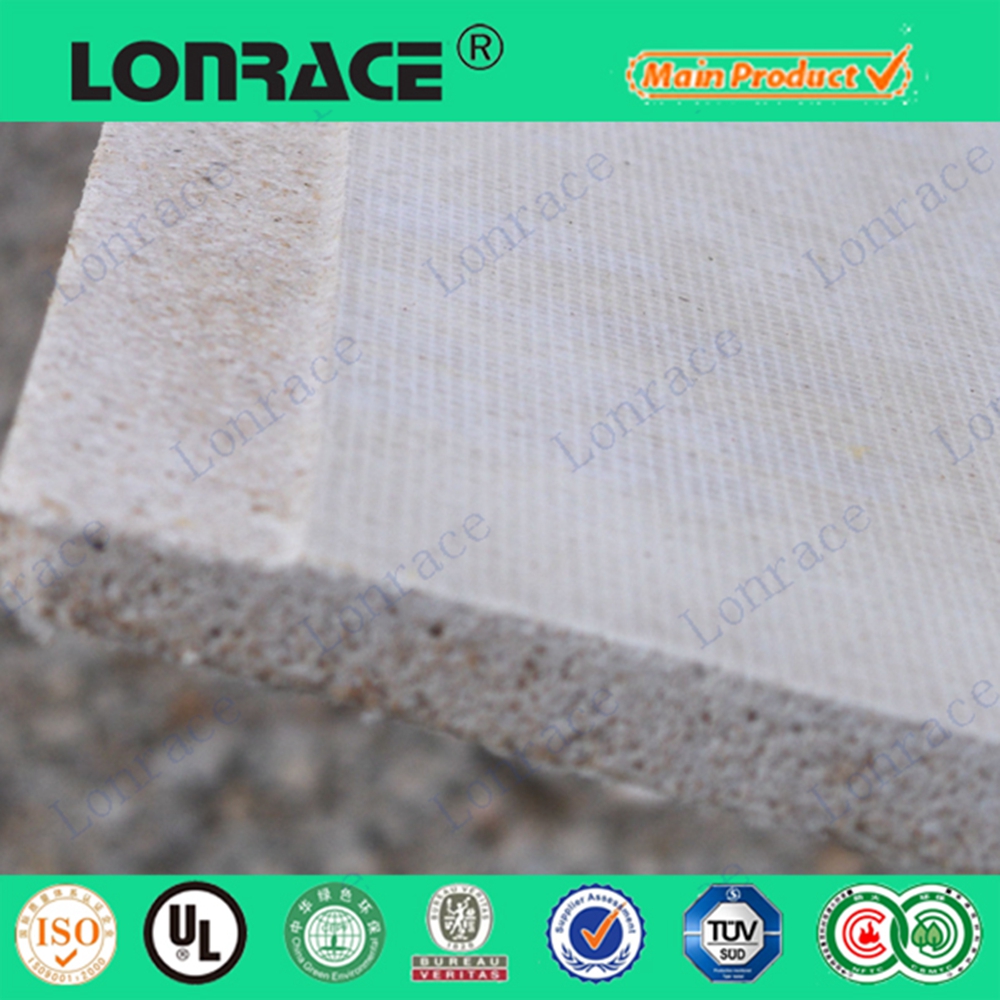

mgo board.jpg
Magnesium oxide, more commonly called magnesia, is a versatile mineral that when used as part of a cement mixture and cast into thin cement panels under proper curing procedures and practices can be used in residential and commercial building construction. Some versions are suitable for a wide range of general building uses and for applications that require fire resistance, mold and mildew control, as well as sound control applications and many other benefits. As an environmentally friendly building material, magnesia board has strength and resistance due to very strong bonds between magnesium and oxygen atoms that form the magnesium oxide molecules (chemical symbol MgO).

Advantages of mgo board:

1. Excellent fireproof function (Grade A1);

2. 100% NON- asbestos;

3. Waterproof;

4. Sound insulation and mothproof;

5. High strength;

6. Long use life.

Packing ways available:



1. Plywood pallet packing



2. Loose bulk packing



3.Other packing way also can be disscussed.

Specification and packing quantity:

Width  X  Lenght  X  Thickness(mm) weight/pc(kgs) pcs/pallet

20GP quantity

( PCs/pallet)

1220 * 2440 * 3 13 250 1500PCS, 6PALLLETS
1220 * 2440 * 4 15 200 1200PCS, 6PALLLETS
1220 * 2440 * 5 18 160 960PCS,   6PALLLETS
1220 * 2440 * 6 22 135 810PCS,   6PALLLETS
1220 * 2440 * 8 27 110 660PCS,   6PALLLETS
1220 * 2440 * 9 31 96 576PCS,   6PALLLETS
1220 * 2440 * 10 33 90 540PCS,   6PALLLETS
1220 * 2440 * 12 40 75 450PCS,   6PALLLETS
Thickness available 3mm-20mm



Technical date of mgo board:

Items Test data Standard
Desity 1.0-1.25g/cm⊃3; GB/T 7019-1997
Water absorption 27.30% JC688-2006
Breaking strength 14.4Mpa GB/T 2005-6
Tensile strenght 5.65Mpa GB 65563 01
Impact strength 6.22KJ/squ meter GB 688-2006
formaldehyde Emission 0.4mg/L GB 18580 -2001
Fireproof level A1 GB/T 5464-1999



Production Process :

mgo board.jpg

mgo board.jpg

Packing ways available:

mgo board.jpg



If any question or want to get quotaion, please
Contact us today
