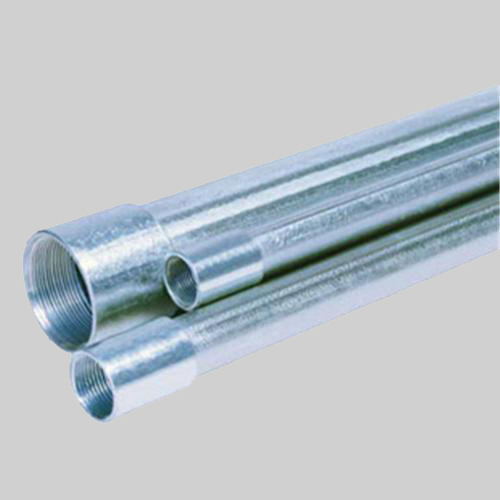

imc conduit

IMC is made from high-grade rolled steel, combining electrical and mechanical performance with ductility. It combines zinc coating provides protection against corrosion and abrasion. IMC is resistant to impact and is easy to cut, bend, and join for smooth ,continuous raceways and fast wire-pulling.
Diamension(inch):
Diamension(mm):
Quantity:
  • imc conduit
  • lonrace

Diamension(inch)

Outside Diameter (mm)

Wall Thickness (mm)

Length(m)

Weight(Kg)

1/2

20.7±0.3

1.98/1.79±0.15

3.05±0.05

2.78±3%

3/4

26.1±0.3

2.10/1.90±0.15

3.05±0.05

3.79±3%

1

32.8±0.3

2.35/2.16±0.15

3.05±0.05

5.38±3%

1-1/4

41.6±0.3

2.42/2.16±0.15

3.05±0.05

7.13±3%

1-1/2

47.8±0.3

2.54/2.29±0.15

3.05±0.05

8.65±3%

2

59.9±0.3

2.67/2.41±0.15

3.05±0.05

11.49±3%
