size: | |
---|---|
Thickness: | |
Type: | |
Quantity: | |

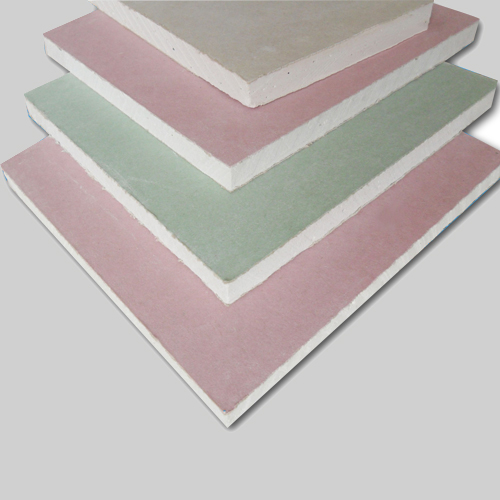

Regular Gypsum Board | Standard Gypsum Board is mainly made from building gypsum with appropriate amount lightweight material,fiber reinforced material and additives, and is sticked to the paper. It has fire resistance and sound insulation function.
Appearance: Ivory face,Gray back
Application: Office Building, Restaurant, House, Hospital, Theater, School, Factory, etc. |
Fire Resistant Gypsum Board | Fire Resistant Gypsum Board is mainly made from building gypsum with appropriate amount lightweight material,inorganic fireproof fiber material and additives, and is sticked to the paper. It is the building material which improves the binding force of the core.It has strong fire resistance when it is used as partition and ceiling.
Appearance: Pink
Application: Office building, Restaurant, House, Hospital, Theater, School, Factory, etc, where require high fire resistant performance on partitions, steel beams and ceilings. |
Moisture / Waterproof Gypsum Board | Moisture Resistant Gypsum Board is mainly made from building gypsum with appropriate amount fiber reinforced material and water--proof additives, and is sticked to the paper.It is used in moist and semi--exposed place,whose surface can be sticked with the tile.
Appearance: Green
Application: Kitchen, Bathroom, Laundry garage, Moist environments, etc. |
Regular Gypsum Board | Standard Gypsum Board is mainly made from building gypsum with appropriate amount lightweight material,fiber reinforced material and additives, and is sticked to the paper. It has fire resistance and sound insulation function.
Appearance: Ivory face,Gray back
Application: Office Building, Restaurant, House, Hospital, Theater, School, Factory, etc. |
Fire Resistant Gypsum Board | Fire Resistant Gypsum Board is mainly made from building gypsum with appropriate amount lightweight material,inorganic fireproof fiber material and additives, and is sticked to the paper. It is the building material which improves the binding force of the core.It has strong fire resistance when it is used as partition and ceiling.
Appearance: Pink
Application: Office building, Restaurant, House, Hospital, Theater, School, Factory, etc, where require high fire resistant performance on partitions, steel beams and ceilings. |
Moisture / Waterproof Gypsum Board | Moisture Resistant Gypsum Board is mainly made from building gypsum with appropriate amount fiber reinforced material and water--proof additives, and is sticked to the paper.It is used in moist and semi--exposed place,whose surface can be sticked with the tile.
Appearance: Green
Application: Kitchen, Bathroom, Laundry garage, Moist environments, etc. |
PRODUCTS SPECIFICATION
1.TYPE :
A: Standard board
B: Fire-resistant board
C: Water resistant board
2.Gypsum board edge:
A: tapered edge (recessed edge)
B: square edge (straight edge)
3.Color of the surface protective paper:
A: White ------usually for standard board
B: Red ------usually for fire-resistant board
C: Light green------usually for moisture resistant board
D: Light blue ------ usually for moisture resistant board
E: Other colors upon your detailed request.
4.Usage:
A: Ceiling system,
B: Partition system,
C: Dry lining system
5. function:
The property of our products is: fire resistant, moisture resistant, sound insulation, heat preservation,etc.
PRODUCTS SPECIFICATION
1.TYPE :
A: Standard board
B: Fire-resistant board
C: Water resistant board
2.Gypsum board edge:
A: tapered edge (recessed edge)
B: square edge (straight edge)
3.Color of the surface protective paper:
A: White ------usually for standard board
B: Red ------usually for fire-resistant board
C: Light green------usually for moisture resistant board
D: Light blue ------ usually for moisture resistant board
E: Other colors upon your detailed request.
4.Usage:
A: Ceiling system,
B: Partition system,
C: Dry lining system
5. function:
The property of our products is: fire resistant, moisture resistant, sound insulation, heat preservation,etc.
Size(mm) | Thickness | Quantity(pcs) 20ft container |
1200*2400 1220*2440 | 9mm | 980 |
10mm | 880 | |
12mm | 740 | |
13mm | 760 | |
15mm | 580 | |
16mm | 550 | |
18mm | 460 |
Size(mm) | Thickness | Quantity(pcs) 20ft container |
1200*2400 1220*2440 | 9mm | 980 |
10mm | 880 | |
12mm | 740 | |
13mm | 760 | |
15mm | 580 | |
16mm | 550 | |
18mm | 460 |
Item | Standard | Test Value | ||
Rupture Load(N) | Thickness 9.5mm | Vertical | ≥ 360 | 440 |
Horizontal | ≥ 140 | 205 | ||
Thickness 12mm | Vertical | ≥ 500 | 590 | |
Horizontal | ≥ 180 | 212 | ||
Dimension Difference(mm) | Length | -6— 0 | -0.1— 0 | |
Width | -5— 0 | 0 | ||
Thickness 9.5mm | ± 0.5 | -0.1— 0 | ||
Thickness 12mm | ± 0.6 | -0.1— 0 | ||
The Stability of Meeting Fire (For Fireproof Gypsum Board) | Not Less Than 20min | > 20min | ||
Cater-corner Length Difference MM | ≤ 5 | 0-1 | ||
Inner Irradiation Ratio | I Ra ≤ 1.0 | I Ra < 1.0 | ||
Outer radiation Ratio | I γ ≤ 1.3 | I γ < 0.1 | ||
Weight per unit (kg/m² )-9.5thickness | ≤ 9.5 | 7.7 |
Item | Standard | Test Value | ||
Rupture Load(N) | Thickness 9.5mm | Vertical | ≥ 360 | 440 |
Horizontal | ≥ 140 | 205 | ||
Thickness 12mm | Vertical | ≥ 500 | 590 | |
Horizontal | ≥ 180 | 212 | ||
Dimension Difference(mm) | Length | -6— 0 | -0.1— 0 | |
Width | -5— 0 | 0 | ||
Thickness 9.5mm | ± 0.5 | -0.1— 0 | ||
Thickness 12mm | ± 0.6 | -0.1— 0 | ||
The Stability of Meeting Fire (For Fireproof Gypsum Board) | Not Less Than 20min | > 20min | ||
Cater-corner Length Difference MM | ≤ 5 | 0-1 | ||
Inner Irradiation Ratio | I Ra ≤ 1.0 | I Ra < 1.0 | ||
Outer radiation Ratio | I γ ≤ 1.3 | I γ < 0.1 | ||
Weight per unit (kg/m² )-9.5thickness | ≤ 9.5 | 7.7 |
