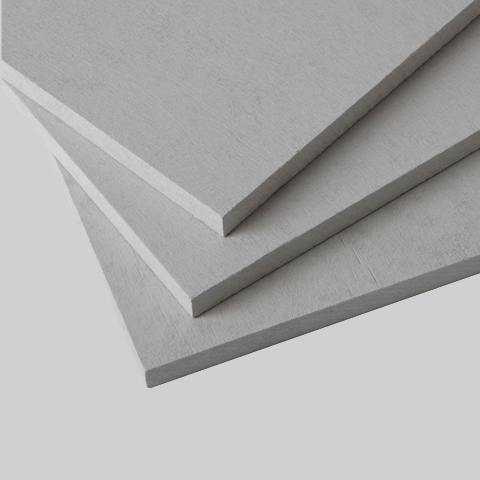

Calcium Silicate Board

A kind of "green material" board, special environment-protecting function makes it superior to other boards with dampproof and fire prevention capability.
Its main basic material is calcium and silicon, and natural fabric strengthen it, other auxiliary material mixed, under the condition of high temperature, high pressure nourish, then it is made. This kind of product does not contain any asbestos.
for ceiling:
for wall panel:
thickness:
Quantity:
  • Calcium Silicate Board
  • lonrace
  • ≥1.20 g/m³
  • ≤10%
  • Grade Al incombustible
  • ≥12 Mpa
  • 100% asbestos free
  • CE&ISO
TEST ITEM             UNIT TEST RESULT
Bending Strength Mpa 6MM Width: >16
Length: >12
9MM&12MM Width: >14
Length: >110
Water Absorption % <10%
Thermal Contraction % <0.2(w/mk) (30 °C )
Density g/cm3 1.2-1.4
Container the ware rate <10%
Combustibility   - Incombustible (class A)
Bulking factor
< 0.25
Thermal Conductivity W/(m • k) < 0.29
Screw pull out N/mn >60
Impact Strength kg/C    :2.0

Specs

Q'ty/1x20ft

Weight(Kgs)

Volume(m3)

1220mmx2440mmx6mm

820pcs

21000

20

1220mmx2440mmx9mm

540pcs

21000

20

1220mmx2440mmx12mm

410pcs

21000

20
