3D eps wire mesh panel-new building material for wall

Views: 360     Author: bingo     Publish Time: 2016-02-25      Origin: Site


Production description of 3d eps wire mesh panel

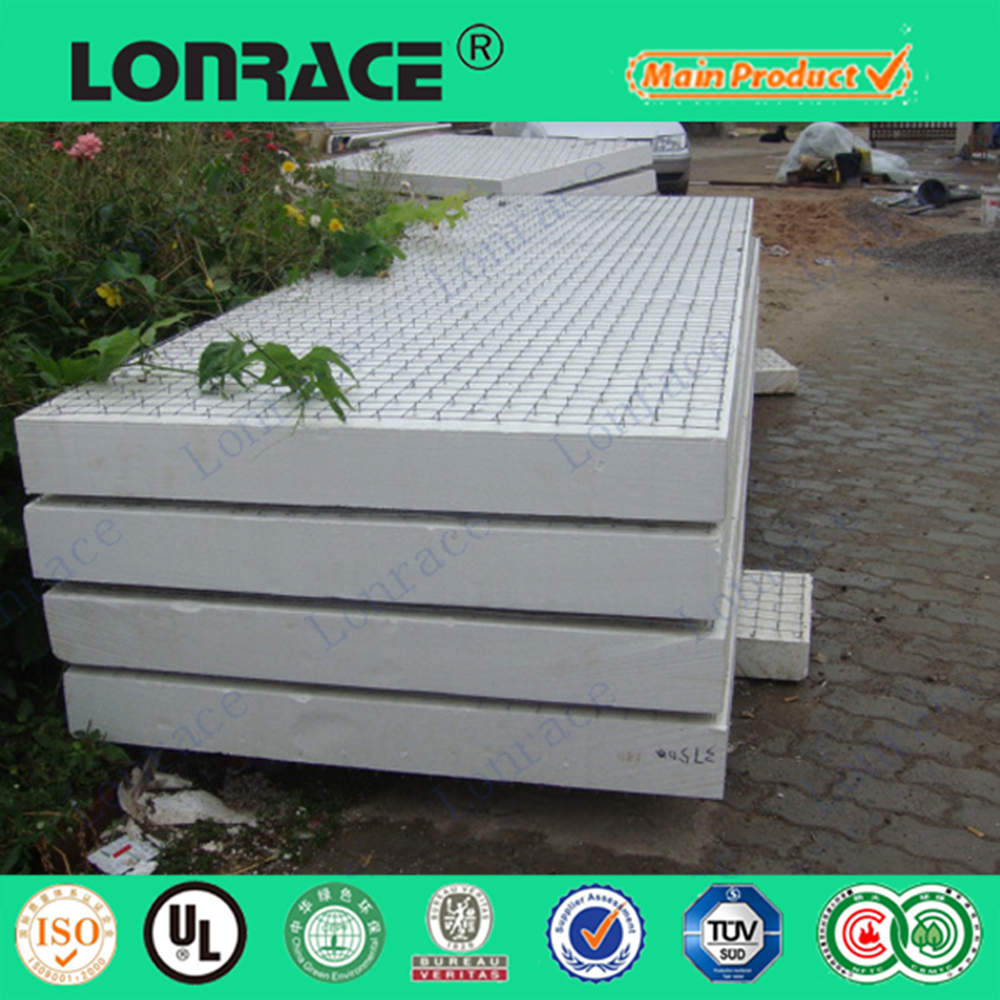

3D eps wire mesh panel is a new wire mesh products, also called double layer welded wire panel, using welding method joining two pieces of welded wire panel together, mainly used in construction. The side panel mesh is commonly 2" opening with 11 or 12 gauge wire, surface with galvanized wire panel or hot dip galvanized wire panel. Inserted EPS size is 2", 2.5" and 4". It's high tensile and is easy to install and these features make 3d wire mesh panels very popular by world construction customers.
3D eps wire mesh panel.jpg

Standard specification





1.Wire mesh

Galvanized wire diameter 2.2mm

Electric galvanized with 18-20g

Mesh size: 50mm x 50mm

3D eps wire mesh panel.jpg

2.Truss wire

Galvanized wire diameter 2.2mm

Electric galvanized with 18-20g

Spacing of truss wire:100mm x 50mm

3D eps wire mesh panel.jpg



Density: about 17-18 kgs/m3

Thickness: 40mm

Fire resistant: class B1-B2

3D eps wire mesh panel.jpg

4.Final board

Size: 1200 x 2400mm

Thickness: 60-65mm

3D eps wire mesh panel.jpg


Loading quantity

For common size, it can load 268-270pcs in a 40'H container

Main usage


The 3D Panel building system has tremendous flexibility - it can be used in place of wood or metal-framed walls, masonry block walls or precast panels. It is an excellent structural system that can be used in floors, ceilings, and roofs. The 3D Panel building system saves construction time while providing greater structural integrity.

3D eps wire mesh panel application.jpg



3D eps wire mesh panel production.jpg
